Zurn Z130 8″ Diameter Roof Drain

Description

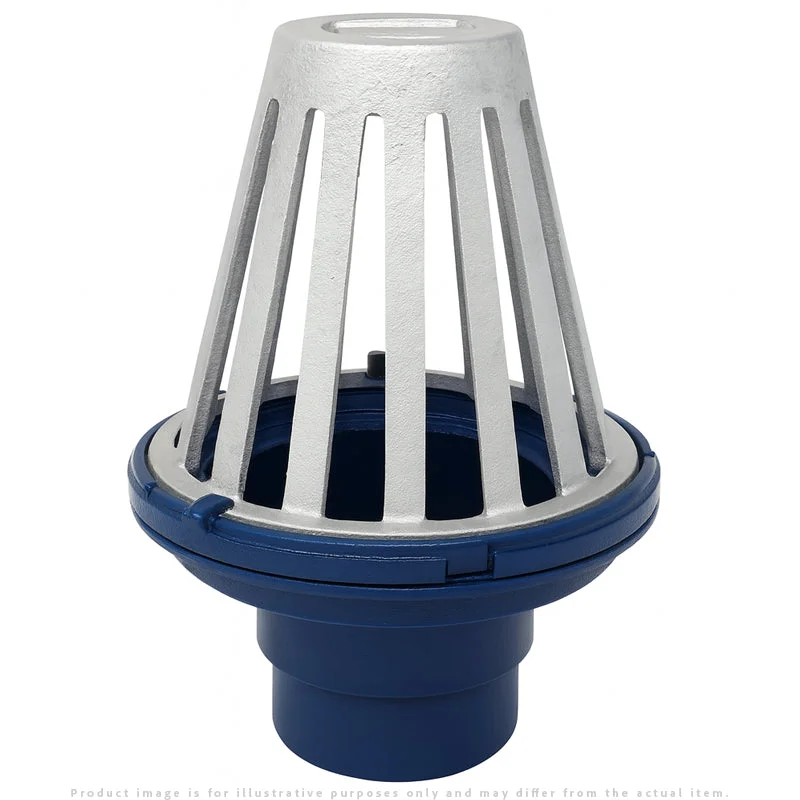

Zurn Z130 Series 8″ Diameter Roof Drain

Product Overview

The Zurn Z130 Series 8″ Roof Drain is designed for efficient drainage on flat and low-slope commercial roof systems. Featuring a Dura-Coated cast iron body, this roof drain delivers long-term durability and corrosion resistance. A combination membrane flashing clamp and gravel guard provide secure membrane integration and debris protection, while optional poly or aluminum dome strainers enhance drainage performance.

Features & Benefits

• Dura-Coated cast iron body for long-term corrosion resistance
• Combination membrane flashing clamp ensures a watertight seal
• Integrated gravel guard helps prevent debris blockage

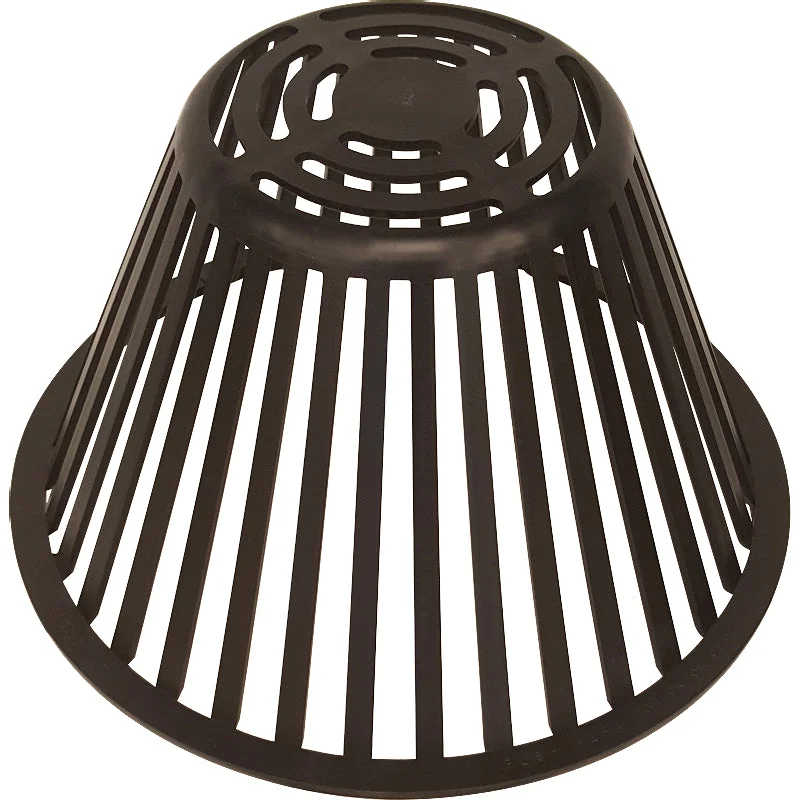

• Available with poly-dome or aluminum dome strainers
• Supports multiple No-Hub pipe connection sizes

Specifications

• Series: Zurn Z130
• Body Diameter: 8″ (203 mm)
• Body Material: Dura-Coated Cast Iron
• Dome Options: Poly-Dome (Z130), Aluminum Dome (ZA130)
• Connection Sizes: 2″, 3″, 4″
• Connection Type: No-Hub

Installation Tips

• Tighten membrane flashing clamp evenly for a watertight seal.
• Select dome material based on rooftop exposure conditions.
• Verify No-Hub coupling compatibility with pipe size.
• Inspect dome and gravel guard regularly to prevent blockage.

FAQs

Q1: What roof types is the Z130 designed for?
Flat and low-slope commercial and institutional roofs.

Q2: What dome options are available?
Poly-dome and aluminum dome strainers.

Q3: Does it include membrane flashing?
Yes, a combination membrane flashing clamp is included.

Q4: What pipe sizes are supported?
2″, 3″, and 4″.

Q5: Is this suitable for commercial roofs?
Yes, it is designed for commercial roof installations.
