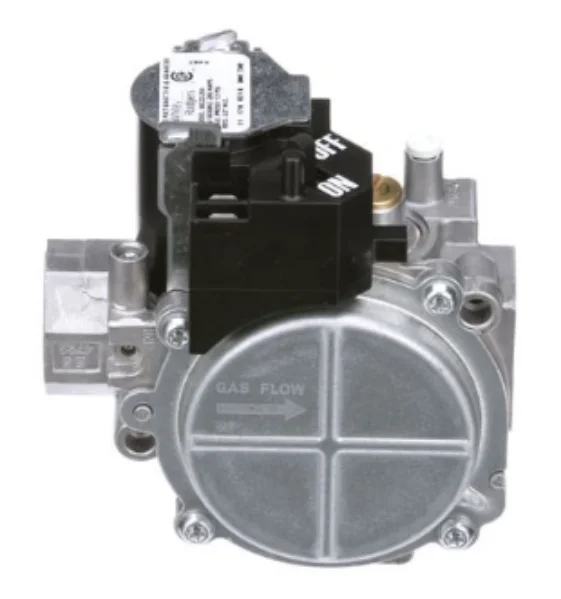

White Rodgers 36G22-254 Universal NPT Gas Valve 24V

Description

White Rodgers 36G22-254 Universal NPT Gas Valve 24V

Features:

• Quiet Redundant
• Built-In Pressure Tap
• Quick-Connect Terminals
• Electric On-Off Switch and Convenient Quick Connect Coil Terminals and Built-In Pressure Taps
• Tamper Resistant Screw and Controlled Gasket Compression to Withstand High Inlet Pressures
• Mounts in any Position Including Upside Down

Specifications:

• Combination Gas Valve
• Type 1-Stage, Fast Open, Straight, Through Wiring
• Nominal Size 1/2 Inch
• End Connection Female Threaded x Female Threaded
• Input Supply Rating 24 Volt AC at 50/60 Hertz 0.3 Amp
• Temperature Rating -40 to 175 Deg F
• Pressure Rating 1/2 PSI
• Inclusions/Features Convertible Natural/Liquid Propane, Inlet/Outlet Pressure Tap, Filter Screen
• Exclusions Liquid Propane Conversion Kit, Reducer Bushing Kit
• Application Electronic Ignition System
• Applicable Standard CSA (Canada and US)
• Fuel Type Natural/Liquid Propane
• Pilot Gas Connection 1/4 Inch Compression Fitting
• Pressure Tap Connection 1/8 Inch Threaded
• Capacity 140000 BTU/Hour (Natural Gas), 226800 BTU/Hour (Liquid Propane Gas)
• Regulator Setting 3.5 Inch
• Regulator Adjustment Range 2.5 to 5 Inch (Natural), 7 to 12 Inch (Liquid Propane)
