About This Product

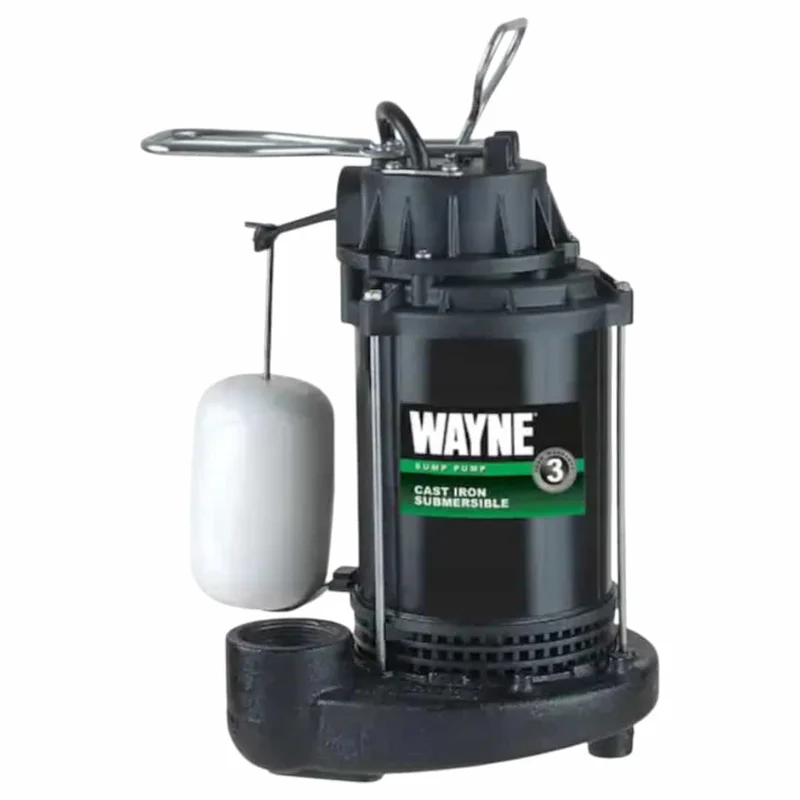

The Wayne CDU800 is a durable and reliable submersible sump pump built for small sump pits, starting at 11 in. in diameter. Featuring a cast iron base and epoxy-coated housing, this pump delivers quiet operation and long-lasting performance. Its ceramic mechanical seal ensures durability in demanding applications, while the 1-1/2 in. discharge allows easy installation. With 1/2 HP power, the CDU800 pumps up to 5,100 GPH for efficient water removal.
Highlights
- Submersible cast iron and epoxy-coated steel sump pump with vertical float switch
- Top suction design prevents air locks and debris clogging in the sump pit
- Rugged construction for long-lasting durability
- Fully submersible
- 1/2 HP; maximum flow rate 5,100 GPH (3,840 GPH at 10 ft. discharge lift)
- 1-1/2 in. NPT discharge
- Suitable for sump basins 11 in. diameter or larger
- Assembled in the U.S.A.
Specifications
| Product Depth (in.) | 10 in. |
| Product Height (in.) | 14 in. |
| Product Width (in.) | 10 in. |
| Switch-Off Height (in.) | 4 in. |
| Switch-On Height (in.) | 9 in. |
| Amperage (A) | 3.8 A |
| Cord Length (ft.) | 8 ft. |
| Discharge Flow @ 0 ft. (gallons/hour) | 5100 GPH |
| Discharge Flow @ 0 ft. (gallons/min) | 85 GPM |
| Discharge Flow @ 10 ft. (gallons/hour) | 3840 GPH |
| Discharge Flow @ 10 ft. (gallons/min) | 64 GPM |
| Discharge Flow @ 15 ft. (gallons/min) | 51 GPM |
| Features | Non-Clogging |
| Housing Material | Steel |
| Impeller Material | Plastic |
| Maximum Horsepower (HP) | 1/2 HP |
| Maximum Pressure (PSI) | 11.03896104 PSI |
| Maximum Working Temperature (F) | 120°F |
| Minimum Sump Basin Diameter | 11 to 14 |
| Minimum working temperature (F) | 40°F |
| Outlet Diameter Connection (in.) | 1-1/2 FPT in. |
| Pack Size | 1 |
| Power Type Required | AC |
| Product Weight (lb.) | 18.5 lb. |
| Pump Switch Type | Vertical |
| Returnable | 30-Day |
| Vertical Lift (ft.) | 10 ft. |
| Voltage | 120v |
| Brand | WAYNE |
| GTIN | 040066100092 |
