Description

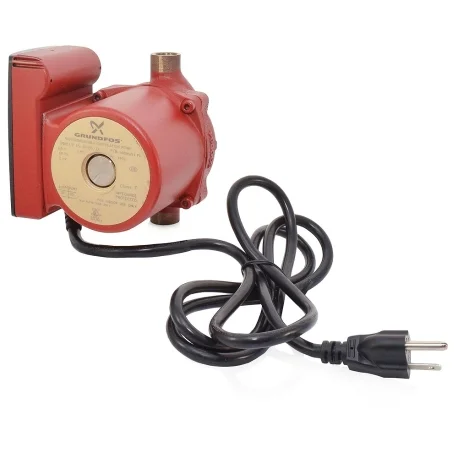

Grundfos UP15-10B5/LC (Grundfos# 59896214) is a 1/25HP Bronze Circulator Pump with 1/2″ Sweat connections and a 6-foot long line cord. Line cord of the UP15-10B5/LC model makes installation easier and eliminates the need for unnecessary wiring, while 1/2″ sweat connections make it easy to integrate the pump into existing system without purchasing and installing pump flanges. Bronze housing of the Grundfos UP15-10B5/LC model enhances the circulator’s resistance to corrosion and allows to use it in a variety op application.
Applications:
- Hot water recirculation
- Radiant heating
- Storage tanks
- Solar
- Many others.
Features:
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, Composite, PES
- Bronze pump housing
- Line cord
Technical Specifications:
- Speed Number: 1
- Max flow: 8.37 US gpm
- Head max: 6.23 ft
- Liquid temperature range: 35.6 – 219.2 F
- Maximum operating pressure: 145 psi
- Approvals on nameplate: UL, CSA
- Pump housing: Bronze
- Pump housing: DIN W.-Nr. 2.1176.01
- Impeller: Composite, PES
- Maximum ambient temperature: 104 F
- Ambient max at 176 F liquid: 176 F
- Maximum operating pressure: 145 psi
- Flange standard: USA Sweat
- Type of connection: Bronze Sweat
- Pipe connection: 1/2″ Sweat
- Pressure stage: 10
- Port-to-port length: 5″
- Number of poles: 2
- Max. power input: 25 W
- Rated power – P2: 0.04 HP
- Main frequency: 60 Hz
- Voltage: 115V
- Current in speed 3: 0.22 A
- Capacitor size – run: 2F/400 V
- Insulation class (IEC 85): F
- Gross weight: 6.5 lbs
Warranty:
2 years from date of installation.
