Description
[shortdesc]
| Operation Mode | Automatic – Float |
| Voltage | 115V |
| Horse Power | 1/2 HP |
| MPN | HSZ2.4S |
[/shortdesc]
Product

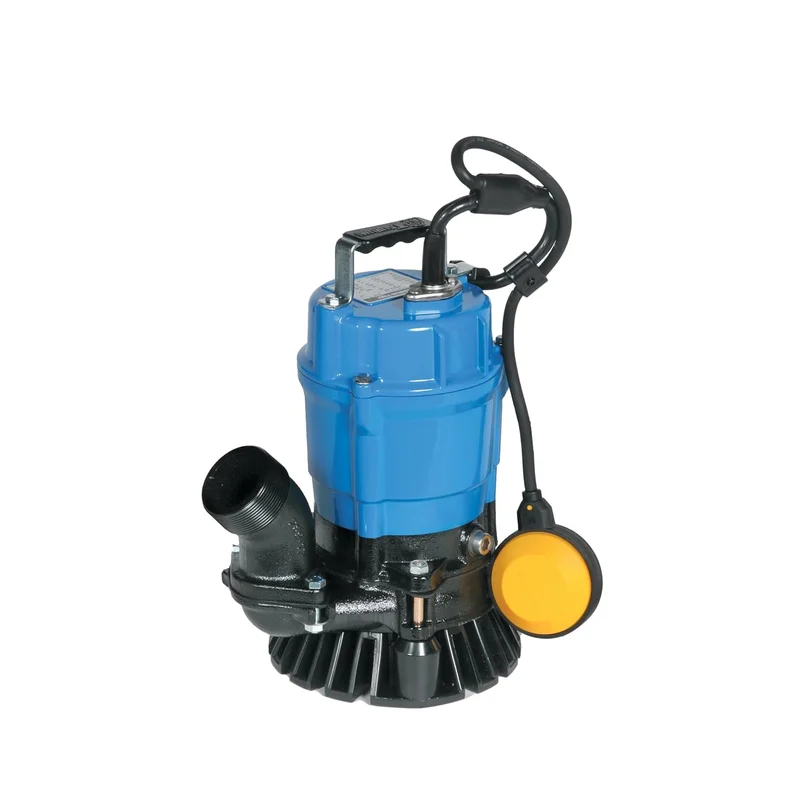

The TSURUMI HSZ2.4S is a high-performance submersible pump designed for automatic operation in wastewater, effluent, and site drainage applications. It features a semi-vortex urethane rubber impeller with an integrated agitator, allowing for effective pumping of sand, debris, and stringy materials. The combination of a built-in float switch, durable materials, and thermal overload protection ensures consistent, reliable performance in residential, commercial, and industrial environments. Its compact and portable design makes it easy to install and operate in tight spaces.
Top Features
- Automatic Float Switch: Enables hands-free operation, turning the pump on/off based on water levels.
- Durable Semi-Vortex Design: Urethane rubber impeller with agitator efficiently handles solids up to 0.276 inches (7 mm).
- Thermal Protection: Built-in thermal overload protection prevents motor damage during dry runs or overloading.
- High-Quality Build: Cast iron casing and stainless-steel fasteners for corrosion resistance and longevity.
- Compact & Lightweight Design: Portable, space-saving design with a top-discharge layout for confined areas.
| Category | Details |
|---|---|
| Model | HSZ2.4S |
| Type | Semi-Vortex Submersible Pump with Agitator |
| Capacity | 13.2 ~ 61.0 GPM (0.05 ~ 0.23 m³/min) |
| Total Head | 13.1 ~ 62.0 ft (4.0 ~ 18.9 m) |
| Horsepower | 1/2 HP (0.40 kW) |
| Max Water Temperature | 104°F (40°C) |
| Solids Handling | 0.276” (7 mm) |
| Motor Type | Air-Filled, 3600 RPM |
| Voltage | 115/230V, Single Phase |
| Insulation Class | Class E |
| Thermal Protection | Built-in |
| Casing Material | Cast Iron |
| Impeller Material | Urethane Rubber |
| Shaft Material | 403 Stainless Steel |
| Seal Material | Silicon Carbide Mechanical Seals |
| Discharge Size | 2” NPT (50 mm) |
| Weight | 25 lbs (11.3 kg) |
| Dimensions (L x W x H) | 12 15/16” x 8 1/8” x 10 1/16” (328 x 207 x 255 mm) |
| Cable Length | 20′ – 32′ (6.2 – 10 m) |
| Operational Mode | Automatic with Float Switch |
| Optional Accessories |
|
===
Info & Guides
| User Manual | Download |
| Specification Sheet | Download |
| Part List | Download |
