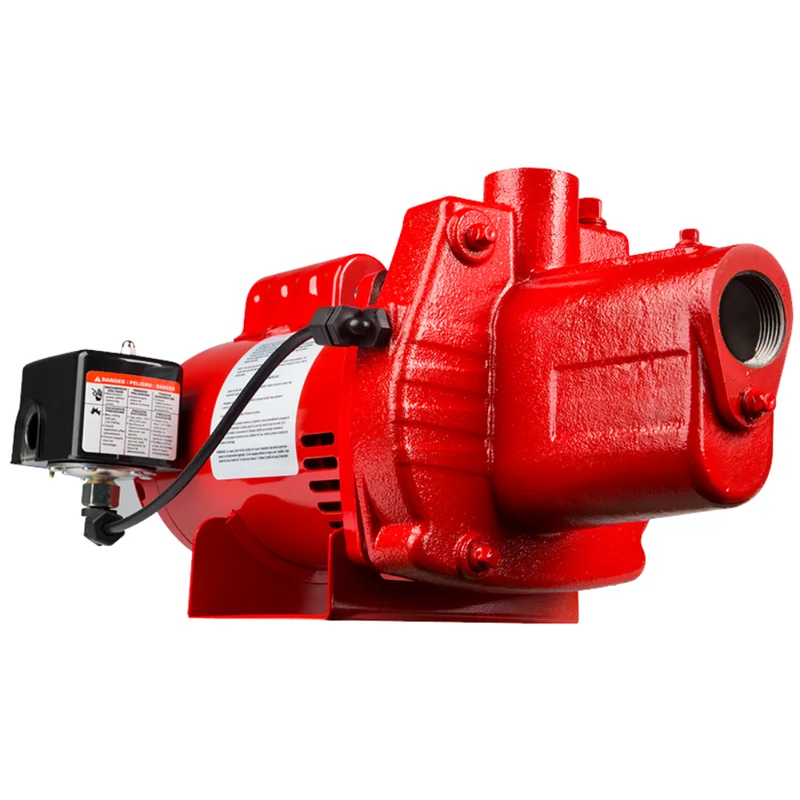

Red Lion RJS-75-PREM — ¾ HP Premium Cast-Iron Shallow Well Jet Pump (602207)
The Red Lion RJS-75-PREM delivers powerful, dependable water pressure for homes drawing from wells up to 25 ft deep. Its cast-iron pump body, dual-voltage motor, and self-priming design make it ideal for irrigation, household supply, or light-duty farm applications.
Key Features & Benefits
- ¾ HP motor provides higher flow and pressure for multi-fixture systems.
- Cast-iron housing ensures durability and quiet, vibration-free operation.
- Self-priming up to 25 ft after the initial prime for easy setup.
- Dual-voltage 115/230 V motor fits standard residential wiring.
- Factory-tested with a preset 30-50 PSI pressure switch for out-of-box reliability.
Applications
- Residential water supply from shallow wells (≤ 25 ft)
- Home and garden irrigation systems
- Water transfer and tank filling applications
Specifications
| Model / Item # | RJS-75-PREM / 602207 |
| Horsepower | ¾ HP |
| Voltage / Amps | 115/230 V • 10.4 A / 5.2 A |
| Maximum Suction Lift | 25 ft |
| Maximum Pressure | 68 PSI |
| Maximum Flow Rate | 14.1 GPM @ 40 PSI |
| Inlet / Outlet Ports | 1¼″ FNPT × 1″ FNPT |
| Construction | Cast Iron Pump Body and Volute |
| Pressure Switch Preset | 30-50 PSI |
Performance and data based on the official Red Lion RJS-PREM manual.
Model Comparison
| Model | Horsepower | Voltage / Amps | Max Flow | Max Pressure | Lift Capacity | Port Size (Suction × Discharge) |
|---|---|---|---|---|---|---|
| RJS-50-PREM | ½ HP | 115/230 V • 7.4 A / 3.7 A | 10.6 GPM @ 40 PSI | 66 PSI | 25 ft | 1¼″ × 1″ |
| RJS-75-PREM | ¾ HP | 115/230 V • 10.4 A / 5.2 A | 14.1 GPM @ 40 PSI | 68 PSI | 25 ft | 1¼″ × 1″ |
| RJS-100-PREM | 1 HP | 115/230 V • 13 A / 6.5 A | 16.4 GPM @ 40 PSI | 71 PSI | 25 ft | 1¼″ × 1″ |
Common Questions
Q: What’s the difference between the RJS-50, 75 and 100 models?
A: Horsepower and flow capacity increase with each model; the RJS-75-PREM balances high pressure with energy efficiency for mid-size homes.
Q: Can this pump be used for continuous irrigation?
A: Yes — it’s suitable for intermittent or continuous operation with clean water sources.
Q: Is it ready to use out of the box?
A: Yes. Each pump is factory-tested and includes a preset 30-50 PSI pressure switch.
Q: How deep can it lift water?
A: Up to 25 ft when properly primed.
The RJS-75-PREM offers the perfect middle ground between power and efficiency for reliable home water pressure and garden irrigation.
