Rain Bird – Easy Fit Adapters

Description

Complete system of compression fittings and adapters for all tubing connection needs in a low-volume system.

Reduces inventory costs: Multi-diameter compression fittings work with a wide range of 1/2″ polyethylene tubing sizes (0.630″ to 0.669″ or 16mm – 17mm outside diameter).

Saves time and effort: 50% less force is required to connect tubing and fittings versus competitive compression fittings. Adapters swivel for easy installation.

Provides increased flexibility: Just three Easy Fit Fittings and five Easy Fit Adapters are needed to make over 160 combinations of connections, accommodating countless installation and maintenance situations.

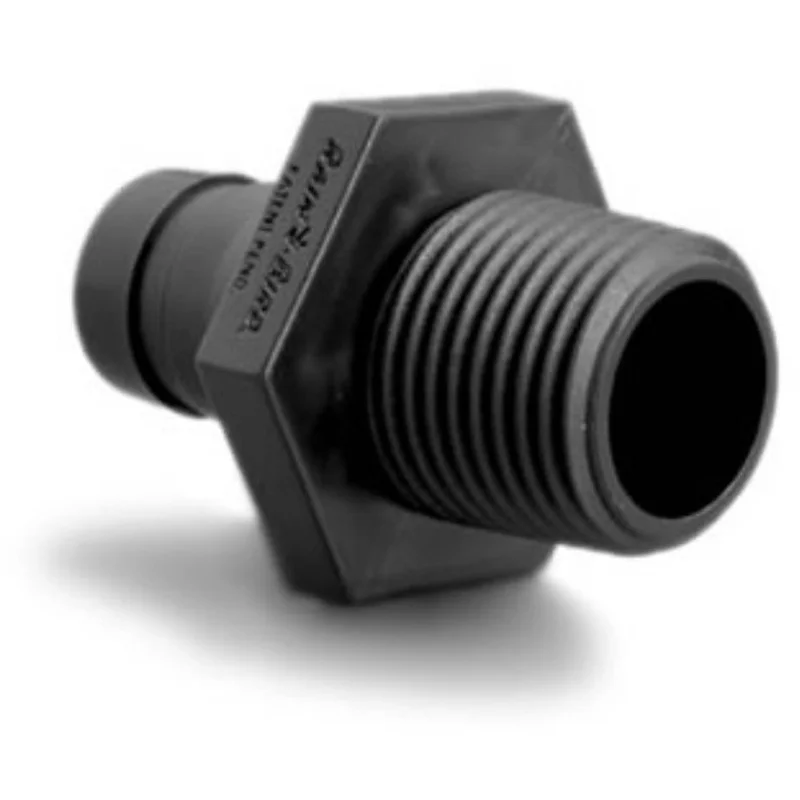

• Easy Fit Compression Fitting System – 1/2 in. Male Pipe Thread Adapter
• Faster and easier to install—requires up to 50% less force to install tubing, making your installation project faster and easier
• Great for maintenance and retrofitting existing systems
• Works with virtually any manufacturer’s 1/2 in. tubing, where the outside diameter ranges from .630″ to .669″ (16mm to 17mm)
• The eight components of the Easy Fit System (3 Fittings and 5 Adapters) can be built into over 160 different configurations
• Not compatible with Rain Bird XBS or XT700 tubing
• Easy Fit Adapters are not barbed fittings; they are to be used only with Easy Fit Compression Fittings

Easy Fit Install Instructions:

Step 1

Select an Easy Fit Compression Fitting—either a coupling, an elbow or a tee.

Step 2

Select the Easy Fit Compression Adapter to connect the fitting to any 1/2″ (12,7 mm) or 3/4″ (19,05 mm) male- or female-threaded component (for example, a threaded PVC riser).

Step 3

After selecting the right Easy Fit Compression System components, simply assemble the two using little effort.

Step 4

Easily insert any manufacturer’s drip tubing from .630″ to .669″ O.D. (16 mm to 17 mm) into the fitting and connect onto the threaded component. Simple. Fast. Done.

Specifications:

• Inlet Size: 0.5
• Inlet Thread: Female NPT
• Flow Control: 0 – 6
• Pressure Rating/Range: 0 – 60
