Description

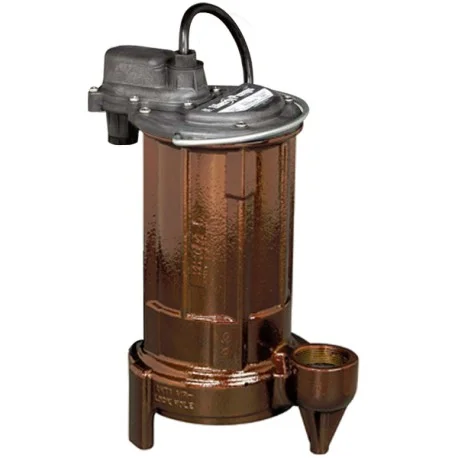

The Liberty 290HV is a manual submersible effluent/sump pump with a 3/4HP, single-phase motor that can reach a max flow of 78GPM at 5′ of head. This Liberty sump/effluent pump has a discharge of 1-1/2NPT and can handle solids up 3/4″. The Liberty 290HV is designed with high voltage capability and best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The Liberty 290HV manual submersible effluent sump pump has a shut-off of 48′ of head and comes with a quick disconnect 10′ power cord.
The Liberty 290HV operates at 203/280V and provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty’s unique Uni-Body casting will provide years of reliable performance.
Features:
- High Voltage 208/230 V
- Liberty’s unique, one-piece “Uni-Body” casting
- Permanently lubricated upper and lower bearings
- Oil-filled, hermetically sealed motors with thermal overload protection
- Stainless steel, removable bottom screen
- 416 Stainless steel rotor shaft
- All fasteners – corrosion-resistant stainless steel
- Semi-Open impeller permitting passage of solids up to 3/4″
- Epoxy powder coat finish
- 1-1/2″ Discharge
- Stainless steel bottom screen – easily removable
- Maximum fluid temperature 140F
Technical Specifications:
- Discharge Size: 1 1/2″ FNPT
- Solids Handling Capability: 3/4″ dia.
- Listing: UL/CSA
- HP: 3/4
- Volts: 208/230
- Phase: 1
- Hertz: 60
- Amps: 5.3
- Flow @ 5′: 78 GPM
- Flow @ 10′: 72 GPM
- Flow @ 20′: 58 GPM
- Thermal overload temp: 248F
- Shut-off Head: 48′
- Cord Length: 10′
- Minimum Sump Diameter: 14″
- Height: 13″
- Weight: 31 lbs
Warranty:
3 years manufacturer’s warranty
