Description

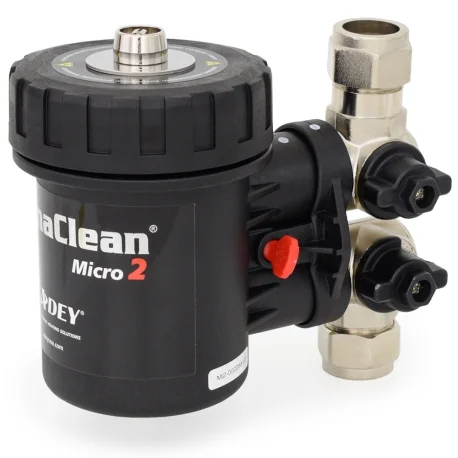

Adey MagnaClean Micro 2 model is a magnetic boiler filter (rust and dirt separator) designed to capture and eliminate magnetite particles in heating system’s water, allowing to minimize heating bills and system maintenance. Micro 2 is ultra compact yet effective and is best suited for smaller size baseboard/radiator and radiant floor heating systems.
Features:
- Industry’s strongest magnets – for maximum capture efficiency
- Ultra-compact – only 6″ high x 4″ wide – ideal for tight spaces and smaller hydronic systems
- Variety of connection options
- 360° rotating shut-off valves for vertical, horizontal or custom installation
- Bi-directional flow – either port can be used for inlet/outlet
- Low-profile drain port w/ plug and built-in air bleeder valve
- Can be converted to a combi (air & dirt separator) using optional air vent (part# PK2-03-05459)
- Includes (2) keys – for drain port and for top cap for easy magnet core removal & cleaning
- Quick-release trigger for full body removal if needed
Technical Specifications:
- System Connections: 7/8″ OD compression (fits over regular 3/4″ copper pipe) or 3/4″ female NPT (with brass adapters included in package)
- Max Working Pressure: 87 psi
- Max Operating Temperature: 207°F (95°C)
- Flow Rate: 12 GPM
- Dimensions: 6″ high x 3-7/8″ thick x 6-1/2″ wide (with valves installed)
- Canister Volume (Fluid Capacity): 0.07 gal
- Service Clearance: 2″ from top & bottom
- Weight (Empty): 4 lbs 8 oz
- Materials: Glass reinforced nylon body and cap, EPDM O-ring seals, brass ball valves/air beeder/drain plug
