Description

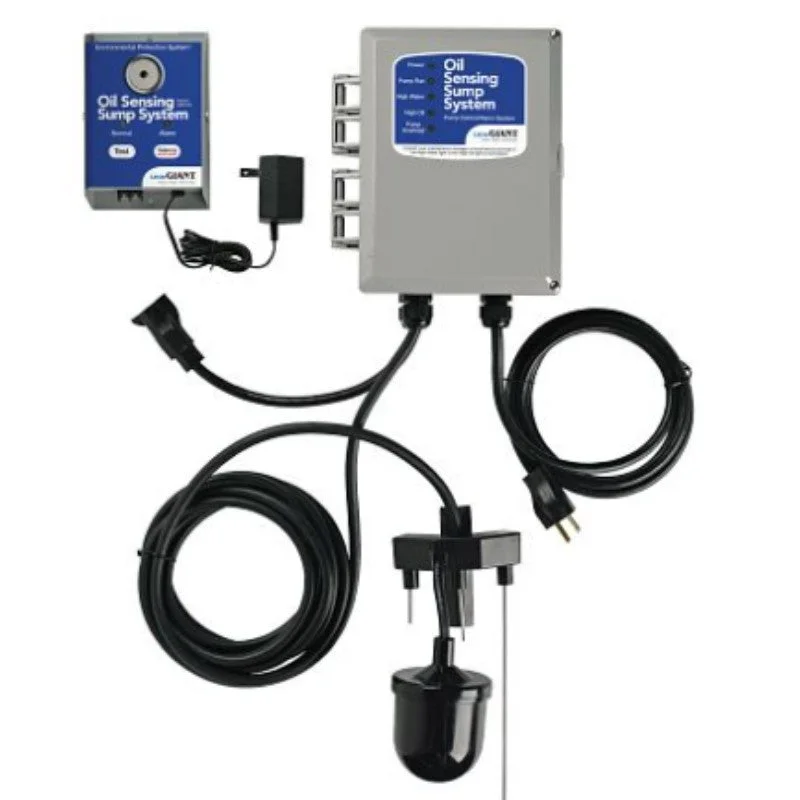

Little Giant OS3-1 Oil Sensing Sump System, 513390, 120/1/60 (Pump Not Included)
Product Overview:
The OS3 Series oil-sensing elevator sump pump is designed and approved for the safe pumping, alarming, and monitoring of elevator sump pits, transformer vaults, and leachate wells. The OS3 elevator sump pump will activate a pump to remove water from elevator pits in accordance with ASME A17.1.
Product Features:
- Multiple indicator lights: power, pump run, high water, high oil, pump overload, and 6 ft SJTOW cord
- Single-piece sensor for easy installation
- ASME – A17 compliant
- Includes remote alarm
- Alarm panel can be connected to Oil Sensing Sump System’s remote panel which contains audio/visual alarming
- Both the main panel and remote alarm panel have auxiliary contacts for connection to a building’s automation system or SCADA system
Specifications
Sensor
| Electrical Input | 120 V, 60 Hz, 12 A |
| Electrical Output | 120 V, 60 Hz, 12 A |
| Max HP | 1/2 horsepower |
| Enclosure Material | Corrosion-resistant thermoplastic |
| Battery Access | Removable lid |
Control Panel
| Enclosure | Type 1 |
| Power Cord | 6′ SJT, 120 VAC |
| Receptacle | SJT, 120 VAC, 15 amp |
Alarm Panel:
| Enclosure | Type 1 |
| Power Cord | Plug in transformer, 120 VAC |
| Backup Power | 9 VDC battery backup |
| LED Indicators | Trouble, high-level, high-oil |
| Audible Alarm | 103 db buzzer, auto test/reset |
Technical Downloads:
- Little Giant OS3-10EN Specification Sheet
- :Little Giant OS3-10EN Owners Manual
