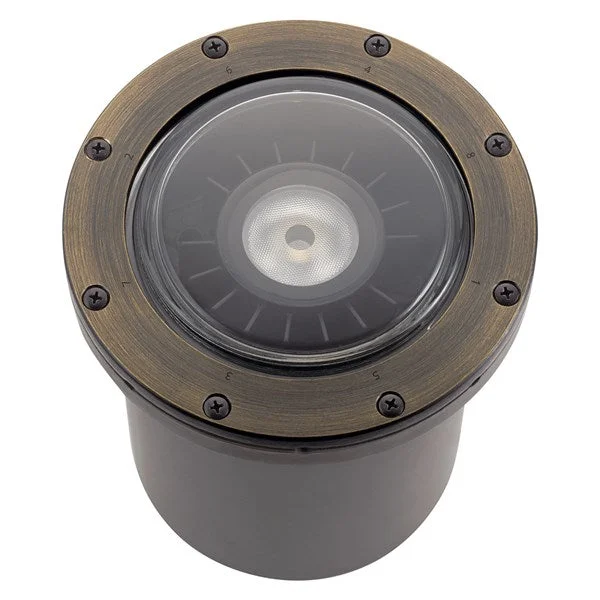

Our VLO 2700K LED 35-Degree Beam Angle In-Ground Accent light is equipped with our Lumen Effects System, which allows you to easily switch between three lumen outputs: 350, 550, or 850 all with the use of the Magnetic Key. Its field configurable design allows for customization based on the needs of the application and its IP67 drive-over rated design can tackle static loads up to 4600lbs.
Mounting/Installation
- Location Rating: Wet
- Wire Connectors: Wire Nuts
Dimensions
- Height: 8.00″
- Length: 7.00″
- Width: 7.00″
Light Source
- Delivered Lumens: 850
- Equivalent Light Source: Halogen
- Expected Life Span (Hours): 50000
- Lamp Included: Integrated
- Max or Nominal Watt: 17.00
- # of Bulbs/LED Modules: 1
Product/Ordering Information
- SKU: 16024CBR27
- Finish: Centennial Brass
- UPC: 783927587709
Photometrics
- Color Rendering Index: 80
- Kelvin Temperature: 2700 K
- Beam Angle Options: 35.00
Electrical
- Operating Voltage Range: 9-15
- Voltage: 12 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
