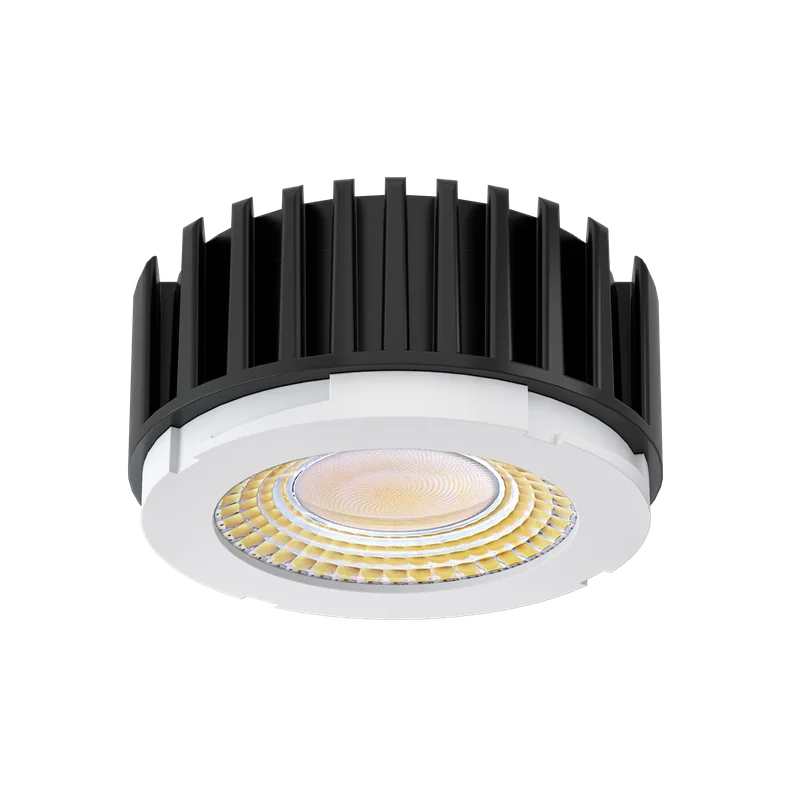

3.5 Inch 10W Shallow LED Luminaire
Trim Sold Separately
The Goodlite G-23501 from the ASTER Series is a shallow 3.5″ interchangeable LED module, designed for spaces where installation depth is limited but high performance is still essential.
Compared to the G-23500 and G-23505 modules, the G-23501 offers the same sleek design, interchangeable compatibility, and high-efficiency output, but with a reduced housing depth — making it ideal for tight ceilings, condos, and retrofit applications.
3.5″ Module (Shallow), 10W,
Additional Dim To Warm Feature,
Selectable Color temperature,
- Wattage : 10
- Equiv. Wattage : 125W
- Output Lumen : 900
- Dimmable: Yes
| Product Code | G-23501 |
| Fixture Type | LED Luminaire |
| Finish | White |
| Wattage | 10W |
| Lumen Output | 900L |
| CCT (Kelvin) | 27K-50K |
| Temperature | Selectable Color |
| Location | Wet |
Trim Sold Separately
Click Here for Changeable Trim
Click Here for Millwork Trim
Spec Sheet
Spec Sheet
Info
| Technology | LED |
| Wattage | 10W |
| Lumen | 900L |
| CCT (Kelvin) | 27K-50K |
| Color Temp. | Selectable Color |
| CRI | >90 |
| Voltage | 120V |
| Beam Spread | 40° |
| Rated Hours | 50000 |
| Dimmable | Yes-Dimmable |
| Weight (lb.) | 1.80 lbs |
Dimensions
| Trim Type | Height | Width | Cutout |
| Standard Trim | 2.36″ | 4.41″ | 3.75″ |
| Wall Wash | 3.44” | 5.12″ | 3.75″ |
| Trimless Round | 2.36″ | 6.89” | 3.85″ |
| Trimless Square | 2.36″ | 9.45″ | Sq 3.77”/ Rd 5.35” |
| Millwork | 2.36″ | 3.94″ | 3.78″ |
Additional Info
| Safety Listing | ETL Listed |
| Location Rating | IP65 – Wet |
| Energy Star | No |
| Warranty | 3 Years |
