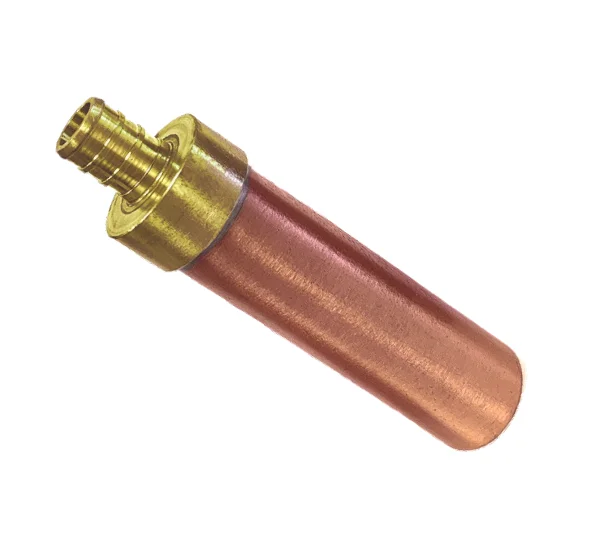

BMI 31224 1/2″ PEX Hammer Arrester – Lead Free

Description

BMI 31224 1/2″ PEX Hammer Arrester – Lead Free

Features & Benefits:

• Residential appliance application type ‘AA’ (Point of use)
• Lead free soldering assembly
• Piston type (permanently sealed chamber) arrester
• FDA approved silicon lubricant
• Working Temperature: 33~180 °F (1~82 °C)
• Working Pressure: 0~60 psi (0~4.2 kgf/cm 2 )
• Maximum Temperature: 200 °F (93 °C)
• Maximum Pressure: 250 psi (17.5 kgf/cm 2 )
• Absorptive Capacity: 150 psi (10.5 kgf/cm 2 )

Compliance:

• Certified By:

• IAPMO (cUPC)

• Complies With:

• ASME A112.18.1
• CSA B125.1-11
• NSF/ANSI Standard 61
• IGC168 – 2012
• PDI WH201
• ASSE 1010-2014

Technical Downloads:

• BMI Lead Free Hammer Arrester: Specification Submital
• BMI Lead Free Hammer Arrester: Promotional Flyer
