Description

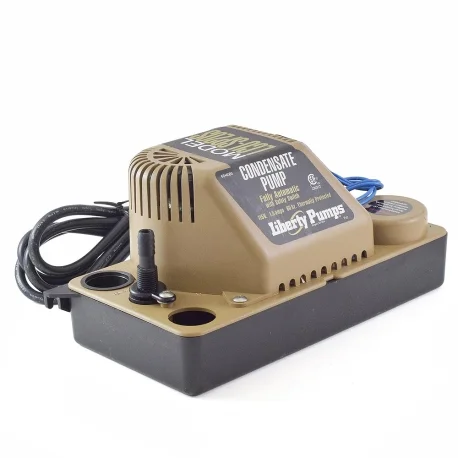

The Liberty Pump LCU-SP20S is an automatic shallow pan condensate removal pump with a115V, 1/30HP motor and a 6′ power cord. This Liberty pump is designed for the removal of condensate from high-efficiency furnaces, A/C equipment, ice machines, drinking fountains, beverage machines, dehumidifiers and other applications needing condensate removal. The Liberty Pump LCU-SP20S is also equipped with a high-impact ABS tank, wall mounts, three-intake holes and a removable check valve. The Liberty LCU-SP20S has a max head of 20′ and a max capacity of 1 US Qt.
Features:
- Built in safety switch
- High impact ABS tank
- Wall mounts
- Three intake holes
- 3/8″ O.D. outlet
- Barbed and threaded discharge connection
- Removable Check valve
- Stainless steel shaft
- 6′ power cord with ground
- Thermally protected
- Fully automatic
- Quiet operation
Technical Specifications:
- Horsepower: 1/30 HP
- Cord length: 6′
- Max Lift: 20′
- Max Recommended Lift: 17′
- Voltage: 115V
- Amps: 1.5
- Hertz: 60 Hz
- Maximum fluid temperature: 150°F
- Height: 5″
- Length: 11-1/8″
- Width: 5″
- Weight: 4.1 lbs.
- Capacity: 1 US Qt.
Warranty:
3 years manufacturer’s warranty
