Description
1/2″ PEX adapters are included by default. For other size adapters (free upgrade – 3/8″ PEX, 5/8″ PEX or 1/2″ PEX-AL-PEX) make a note at checkout.

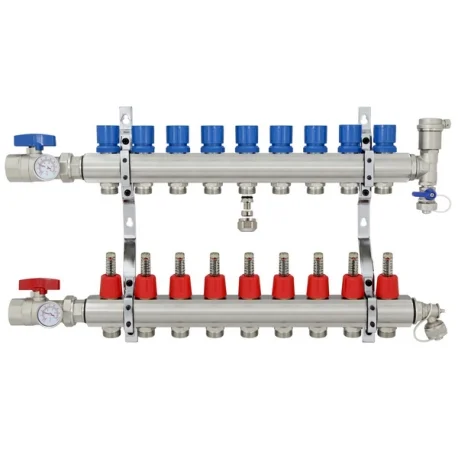

9-branch Deluxe Radiant Manifold Set. Brass body and components with nickel plated finish. Comes pre-assembled.
The following is included in every manifold set:
(1) Supply side radiant manifold w/ (9) flow indicators and (9) outlets for PEX tubing.
(1) Return side radiant manifold w/ (9) manual balancing valves and (9) outlets for PEX tubing.
(2) 1″ threaded shut off valves w/ 1/4-turn handles – one for supply and one for return manifold (red & blue).
(2) Temperature gauges – one for supply and one for return manifold to monitor supply and return water temperatures.
(1) Float-type air vent to eliminate air from the system (air vent caps included for pressure testing purposes).
(2) All-in-one drain & fill valves with 3/4″ garden hose (drain hose) connection and a cap – on each manifold.
(18) Compression adapters for 1/2″ PEX tubing – included, no purchase necessary. Adapters of other sizes (3/8″, 5/8″) can be purchased separately.
(2) Wall mounting brackets.
Other suggested components:
For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT)
Technical Specifications:
- Total number of PEX outlets: 18
- Distance OC (On Center) between PEX outlets: 2″
- Overall height when installed: 14.5″
- Overall width when installed: 24.75″
- Distance between supply and return manifolds (on center): 8.25″
- Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
- Maximum flow per branch: 1.4 GPM (Gallons Per Minute)
- Max. operating temperature: 158°F
