Description

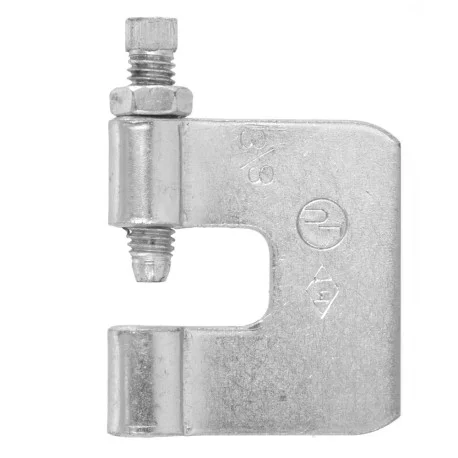

Secures a standard 3/8″ threaded rod to the bottom of an I-beam, wide-flange beam or bar joist. To ensure full engagement, the rod should make contact with the beam flange.
Technical Specifications:
- Threaded Rod Size: 3/8″
- Material: Low Carbon Steel
- Finish: Electro-Galvanized
- Clamp opening (max. beam thickness): 3/4″
- Max Recommended Load: 400 lbs
- UL and FM Listed
- Complies w/ Federal Specifaction A-A-1192A (Type 23)
- ANSI/SP-69 & SP-58 (Type 23) Certified.
