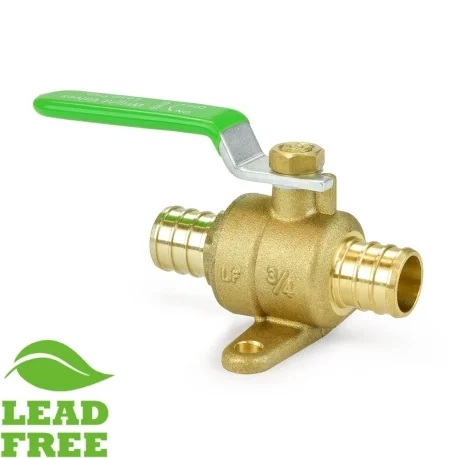

3/4″ PEX Brass Ball Valve w/ Drop Ears, Full Port (Lead-Free)

Description

3/4″ PEX Ball Valve with Drop Ears features equal 3/4″ PEX crimp style connections on both sides on the valve. PEX Tubing can be connected to the valve using either crimp or clamp (cinch) connection methods. Approved for potable water use nationwide and compatible with all types of PEX (A, B, C).

Technical Specifications:

• Inlet/Outlet Connections: 3/4″ PEX, crimp style (ASTM F1807)
• Non-shock WOG: 400psi
• Standard Working Pressure: 150psi
• Maximum Operating Temperature: 200F
• Valve Body Material: Lead-Free Brass (NSF/ANSI 372, 61-G)
• Seats: Teflon
• Handle Type: 1/4 – turn, Stainless Steel.
