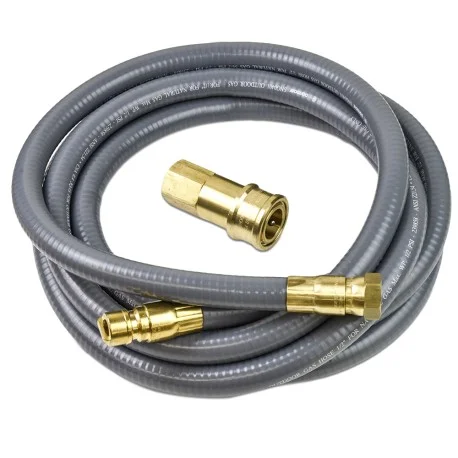

12ft Quick-Disconnect, PVC-Coated, Portable Gas Appliance/BBQ Connector, 1/2″ FIP x 1/2″ FIP, 1/2″ ID

Description

Dormont 12ft long 1/2″ ID (5/8″ OD) PVC-coated connector with quick-disconnect fittings for portable propane tanks (for outdoor use – BBQ’s cooking appliances, etc.).

Features:

• 304 Stainless Steel tubing is flexible, durable and corrosion-resistant
• Quick-Disconnect adapters for fast installation of portable propane tanks for BBQ grills, cooking appliances, etc.
• PVC hot dipped for superior corrorion protection
• CSA certified and 100% leak tested
• Assembled in the USA.

Technical Specifications:

• Connections: 1/2″ FIP x 1/2″ FIP Quick Disconnect
• Hose Diameter: 1/2″ ID
• Length: 12′
• Temperature: – 40°F to 200°F
• Maximum Pressure: standard line pressure up to 1/2 PSI
• Flow Capacity for Natural Gas (Gas Hose Connector): 81,000 BTU/hr
• Flow Capacity for Natural Gas (Quick Disconnect): 91,000 BTU/hr
• Flow Capacity for LPG/Propan (Gas Hose Connector): 129,600 BTU/hr
• Flow Capacity for LPG/Propan (Quick Disconnect): 145,600 BTU/hr
• Tubing: Annealed, 304 stainless steel (ASTM A240)
• Coating: Hot-dipped gray PVC
• Nuts & Adapters: Zinc plated carbon steel
