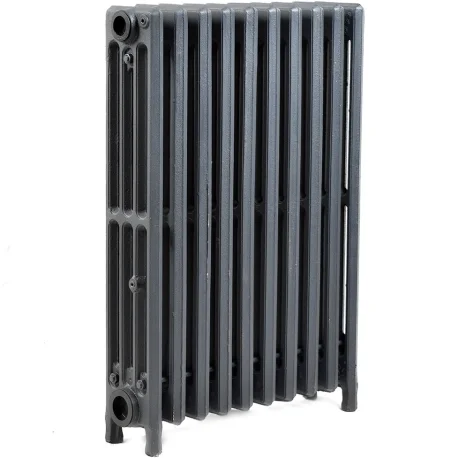

10-Section, 4″ x 25″ Cast Iron Radiator, Free-Standing, Slenderized/Tube style

Description

Cross-References:

• Burnham (U.S. Boiler) radiator of same size
• Governale (Gov-Free series) radiator of same size

Technical Specifications:

• Steam BTU: 2,400
• BTU @ 220°F: 5,000
• BTU @ 215°F: 4,800
• BTU @ 210°F: 4,600
• BTU @ 200°F: 4,200
• BTU @ 190°F: 3,800
• BTU @ 180°F: 3,400
• BTU @ 170°F: 3,000
• BTU @ 160°F: 2,600
• BTU @ 150°F: 2,200
• Water Content (Gal): 1.2
• Connections: Top: 1″ FNPT, Bottom: 1-1/4″ FNPT, Air Vent: 1/8″ FNPT
• Max Working Pressure: 15 psi (Steam), 30 psi (Water)
• Max Working Temperature: 220°F
• Dimensions (D x H x W): 4-1/2″ x 25″ x 17.5″
• Weight: 85 lbs
